PROJECTS
A record you can check.
Selected case studies from the UAE and Yemen, followed by our full E,I&C and power-management track record.
11 case studies
CompletedPower-plant SCADA and PMS for a flagship sour-gas development
Turnkey SCADA + PMS
CompletedSolar + generator hybrid control for a construction-camp power plant
Hybrid PV + genset
CompletedElectrical construction for Yemen's largest solar plant
120 MWp
OngoingMigrating a gas plant from Foxboro I/A to PlantPAx without losing production
Gas plant + compressor stations
OngoingThree EPC packages on one 40 MW hybrid solar plant
40 MW hybrid
CompletedSynchronising four 5.8 MW gas engines at a central processing facility
4 × 5.8 MW
CompletedCommissioning a 264 MW power plant through performance test
264 MW
CompletedInterconnecting two power plants under one power-management system
≈ 60 MW combined
CompletedMigrating RTG crane drives inside a live container terminal
Live terminal
OngoingTurnkey SCADA for a utility solar plant with battery storage
PV + BESS
CompletedPipeline trunkline control between EPFs and a CPF
EPF ↔ CPF
TRACK RECORD
E,I&C project schedule, 2019–2026.
| Client / EPC | Country | Contract | Scope of work | Year | Status |
|---|---|---|---|---|---|
| PESCO | UAE | 264 MW power plant | Installation, pre-commissioning, commissioning & start-up of 2 GE units and all BoP, incl. performance test | 2019 | Completed |

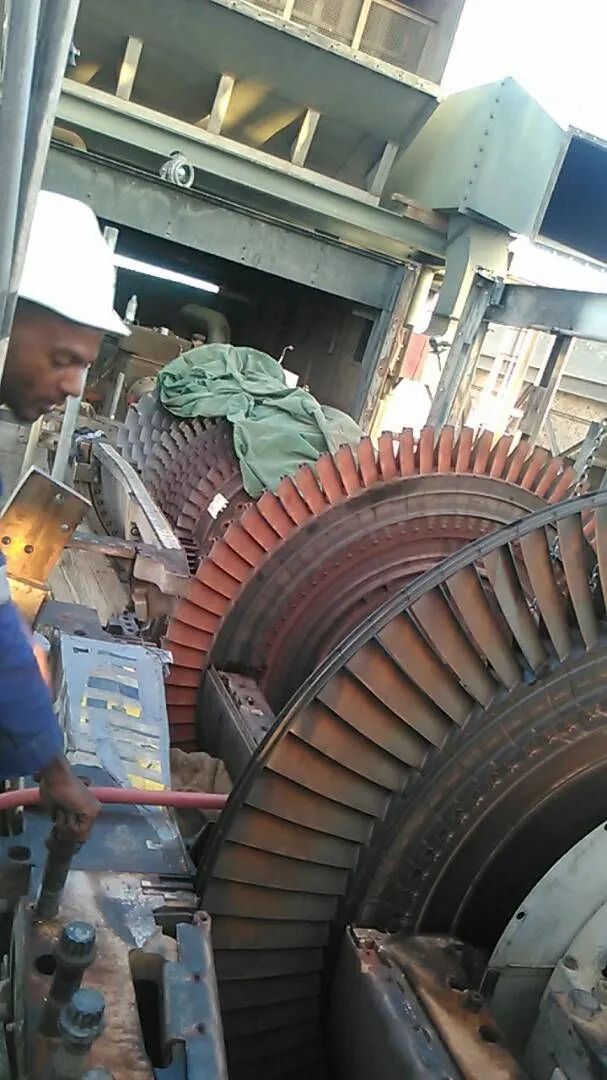

| SEPOC | Yemen | Frame 5C & 5D overhaul | Gas-turbine overhauls and control upgrade Mark IV → Mark VIe | 2019 | Completed |
| OMV | Yemen | CPF installation & commissioning | Sync, PMS & load management for 4 × RR gas engines, 5.8 MW each | 2020 | Completed |
| Bajel | Yemen | Gas-engine control migration | Modicon (Schneider) to Allen-Bradley control system | 2020 | Completed |
| YICOM | Yemen | Tank monitoring system | EPC of tank-gauging system on Endress+Hauser | 2020 | Completed |
| OMV | Yemen | CPF fire system | EPC of MCC fire detection and FM-200 suppression | 2021 | Completed |
| Griffin | Yemen | Trunkline control system | EPC of pipeline trunkline control between EPFs and CPF | 2022 | Completed |
| SEPOC | Yemen | CPU ↔ CPU II interconnection | SICAM PMS integrating 3 Solar GTs and 3 RR AVON GTs across two plants | 2022 | Completed |
| SEPOC | Yemen | GT control-panel upgrade | FT100 → FT125 installation, commissioning & start-up | 2023 | Completed |
| Ingenuity | Yemen | FEED: 75 MW GT plant | Electrical & automation FEED, Block 10 PetroMasila upgrade | 2023 | Completed |
| SEPOC | Yemen | Barton chart digitalisation | 120 chart recorders converted to PLC self-calculation | 2024 | Completed |
| SEPOC | Yemen | DCS upgrade Foxboro → PlantPAx | Top & second-layer migration, gas plant and compressors | 2024 | Ongoing |
| Masdar / EMC | Yemen | 120 MWp Aden solar plant | MV/LV construction: 36 kV & 3.3 kV terminations, substations T&C | 2024 | Completed |
| UTICO / Yellow Door | UAE | Solar + BESS SCADA EPC | Turnkey SCADA: trackers, weather stations, gensets, synchronisation | 2024–26 | Ongoing |
| Aden Ports | Yemen | RTG crane migration | RTG drive-system and control migration | 2024 | Completed |
| ADNOC / Tecnimont | UAE | TCF power plant SCADA & PMS | Turnkey Emerson PLC/SCADA and power management | 2024–25 | Completed |
| ADNOC / Tecnimont | UAE | Camp power plant SCADA & PMS | Turnkey Emerson PLC/SCADA and power management | 2024–25 | Completed |
| ATGC / GSU | Yemen | 40 MW hybrid solar: SCADA | Turnkey Siemens PLC/SCADA and PMS | 2025–26 | Ongoing |
| ATGC / GSU | Yemen | 40 MW solar: CCTV | Complete plant CCTV solution | 2025–26 | Ongoing |
| ATGC / GSU | Yemen | 40 MW solar: electrical | Site installation & pre-commissioning: MV, LV, control | 2025–26 | Ongoing |
POWER MANAGEMENT
Synchronisation and PMS record, 2011–2026.
Fifteen years of synchronisation and load-sharing delivery by our team, from twin-genset island plants to multi-technology interconnections and PV + BESS + genset hybrids.
| Plant / client | System scope | Control platform | Year |
|---|---|---|---|
| DNO Block 43 CPF | Sync & power sharing: 2 × CAT 1.5 MW + 2 × Waukesha 1 MW gas | easYgen 3200 | 2011 |
| Aden Airport | Sync & PMS: 1 × MHI 1.5 MW + 2 × Cummins 400 kW | easYgen 3200 | 2012 |
| Water Authority: Ahmed Well | Sync & PMS: 1 × MHI 1.5 MW + 4 × Perkins 1.5 MW | easYgen 3200 | 2012 |
| Water Authority: Naser Well | Sync & PMS: 1 × MHI 1.5 MW + 2 × Perkins 1.5 MW | easYgen 3200 | 2013 |
| Water Authority: Aden | Sync & power sharing: 1 × CAT 1.5 MW + 2 × Perkins 1.5 MW | DeepSea | 2017 |
| OMV Block S1 | Sync & power sharing: 1 × GE JGC 1.5 MW gas + 2 × CAT 500 kW | DeepSea | 2019 |
| SEPOC Block 18 CPU | Power sharing: 3 × Solar C-50 gas turbines, 4 MW each | Allen-Bradley CGCM | 2019 |
| SEPOC Block 18 | PMS + load management: 3 × RR AVON 16 MW + 3 × Solar 4 MW | SICAM 8000 + ControlLogix | 2021 |
| OMV Block S1 CPF | Sync, PMS & LMS: 4 × RR gas engines, 5.8 MW each | DEIF AGC-3 + S7-400 | 2022 |
| OMV Block S1 EPF1 | Sync & PMS to grid: 3 × CAT 1.5 MW | DEIF AGC-150 | 2022 |
| OMV Block S1 EPF2 | Sync & PMS to grid: 2 × Cummins 1.2 MW | DEIF AGC-150 | 2022 |
| OMV Block S1 EPF3 | Sync & PMS to grid: 3 × CAT 1.5 MW | DEIF AGC-150 | 2022 |
| SEPOC: Alraja gas plant | PMS: 3 × CAT gas 1.2 MW + Solar C-20 gas turbine | DEIF AGC-150 + ControlLogix | Ongoing |
| Dome Advanced, UAE | On-grid PMS: 2.2 MWp PV + 1.5 MW BESS + 3 × 800 kVA gensets | DEIF AGC-150 + ControlLogix | Ongoing |
Hail & Ghasha: TCF power plant SCADA & PMS
Challenge
The temporary construction facilities on ADNOC's Hail & Ghasha development needed a power plant that could be supervised and load-managed from one place, delivered to a tier-1 EPC schedule.
Solution
DAC engineered, built and integrated a turnkey SCADA and power-management system on Emerson PLC and SCADA, then took it through FAT, commissioning and start-up.
Result
Plant generation supervised and load-managed from a single SCADA, handed over to the EPC contractor.

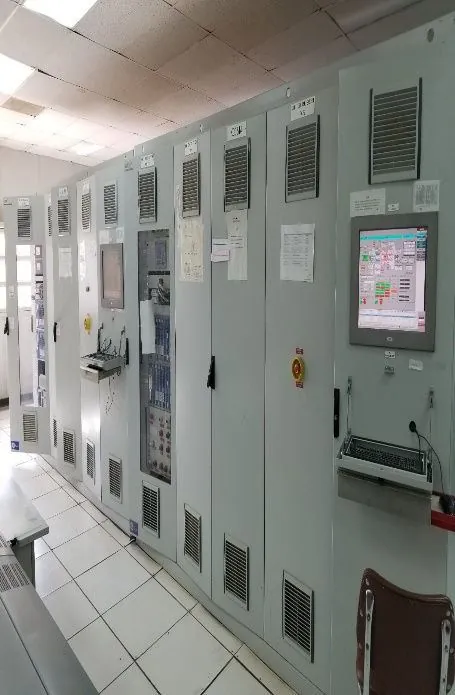

Hail & Ghasha: camp power plant SCADA & PMS
Challenge
The construction camp's hybrid plant had to blend solar and generator power safely while keeping the generators above minimum load.
Solution
A second turnkey scope: SCADA and PMS on the Emerson platform controlling solar and generators together, delivered through FAT, SAT and performance test.
Result
Solar and generators run as one plant under a single control system.

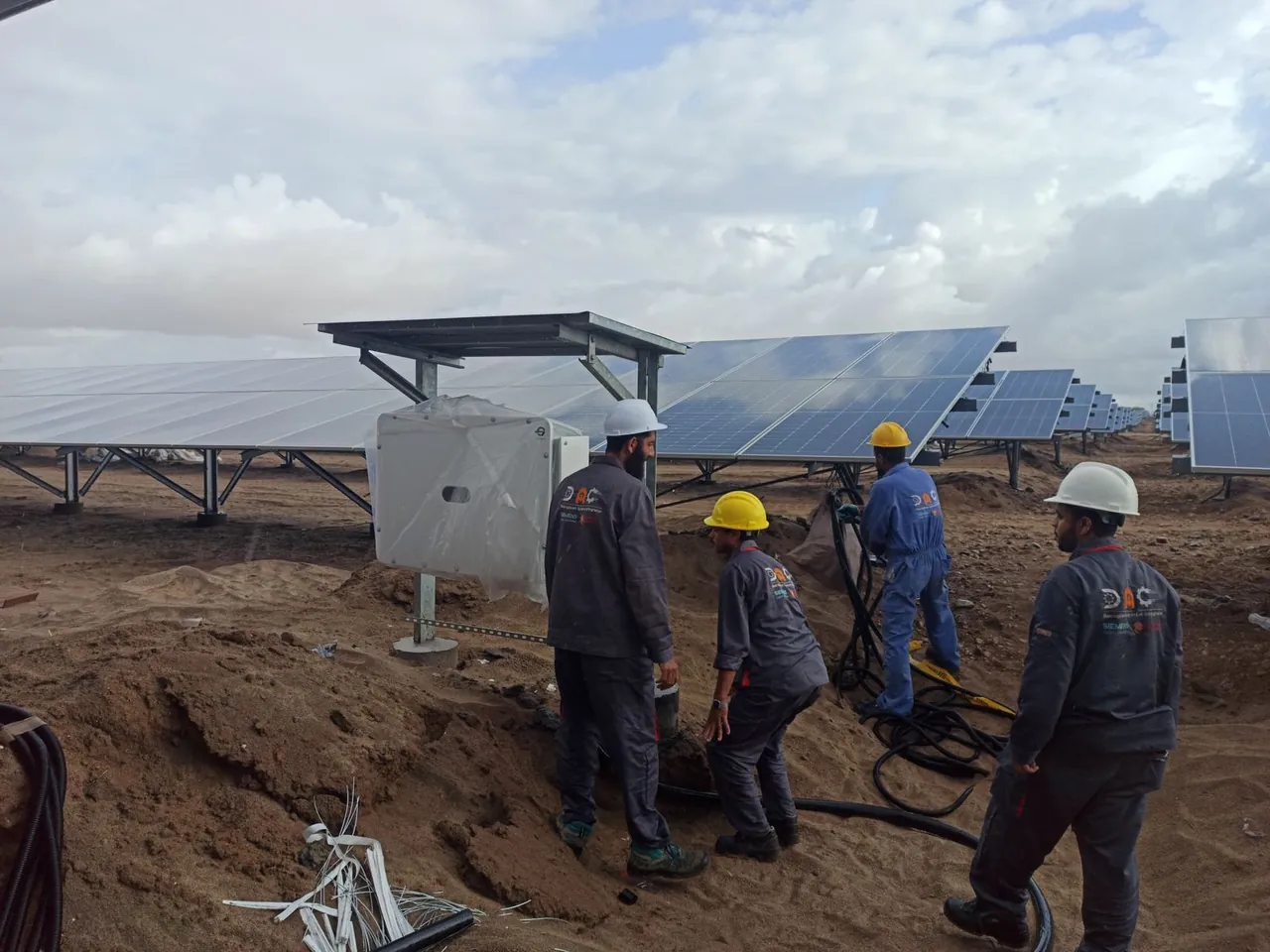

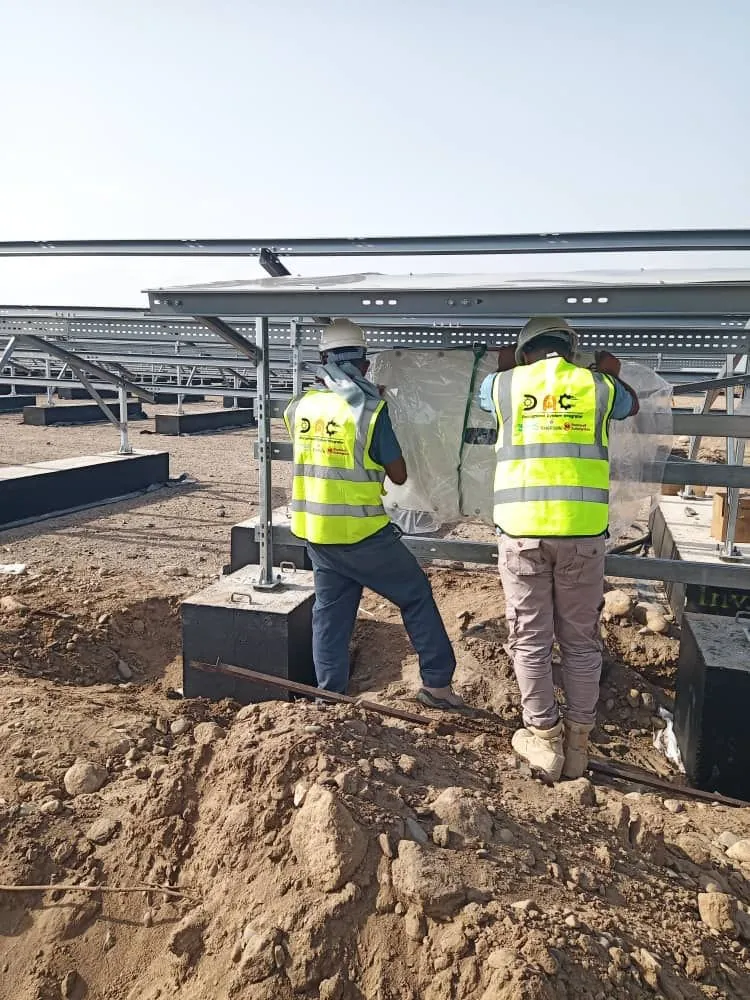

120 MWp Aden solar IPP: MV/LV construction
Challenge
A 120 MWp utility plant needed its MV and LV works installed, terminated and tested to an IPP standard in Aden.
Solution

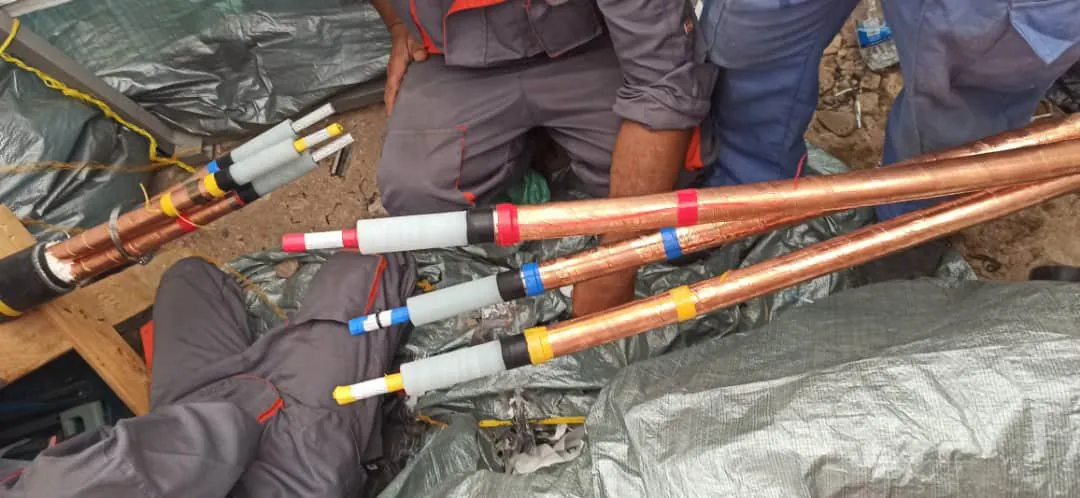

DAC installed, terminated, earthed, tested and commissioned 33 kV and 11 kV switchgear, power transformers, RTCC panels, DC chargers and all 36 kV and 3.3 kV cabling.
Result
Substations and collector systems energised and handed over for plant commissioning.

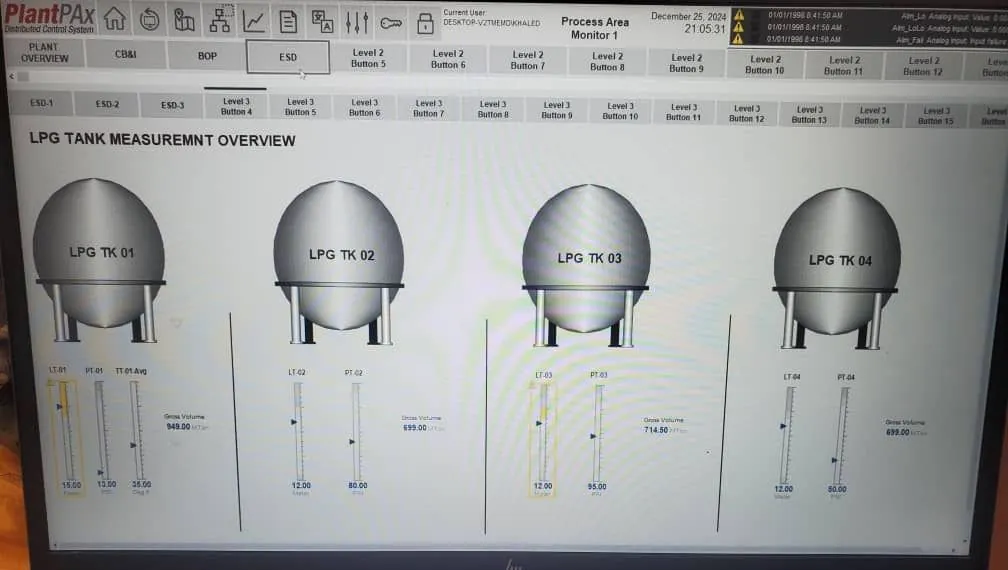

DCS migration: Foxboro to PlantPAx
Challenge
An ageing Foxboro I/A DCS controlled a gas-processing plant and its compressor stations, with spares running out and production that could not stop.
Solution
Top- and second-layer migration to a Rockwell PlantPAx architecture, with cutover planning that moves loops in controlled steps.
Result
A supported, modern DCS, with the plant kept in production through each cutover step.
Mocha 40 MW hybrid solar: SCADA, electrical & CCTV
Challenge
A 40 MW hybrid plant needed its SCADA, power management, site electrical works and security delivered by one accountable contractor.
Solution
Turnkey SCADA and PMS on Siemens PLC, the complete MV, LV and control installation with pre-commissioning, and a full plant CCTV solution.
Result
One contractor, one interface: controls, electrical works and security coordinated on a single schedule.

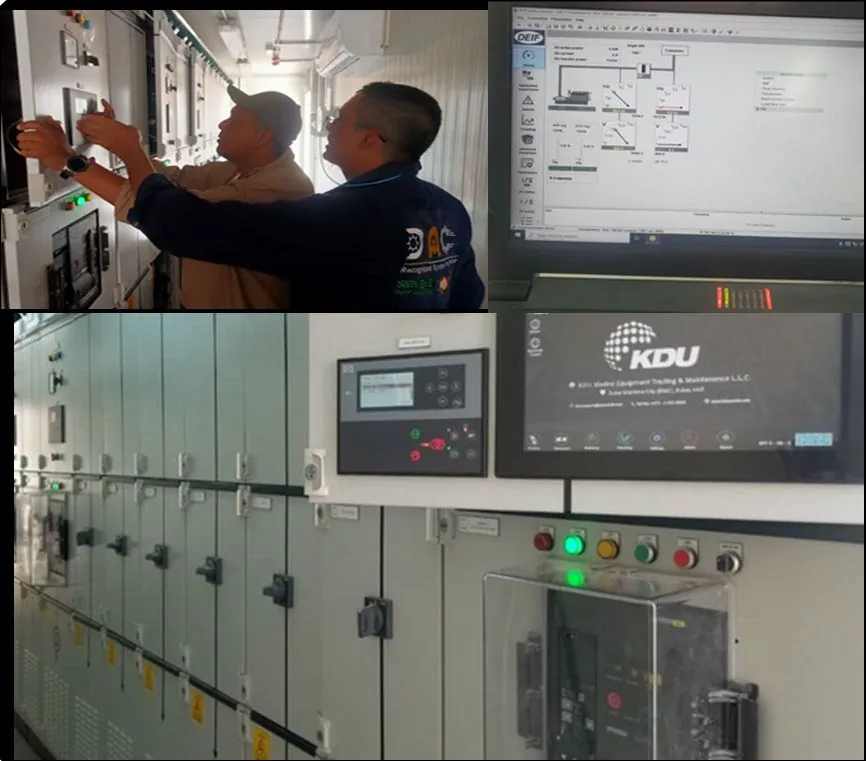

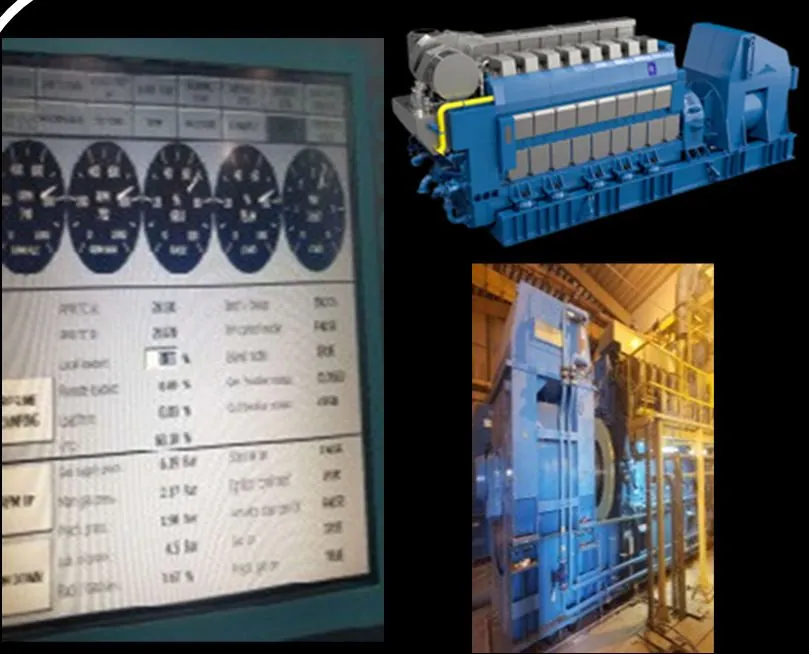

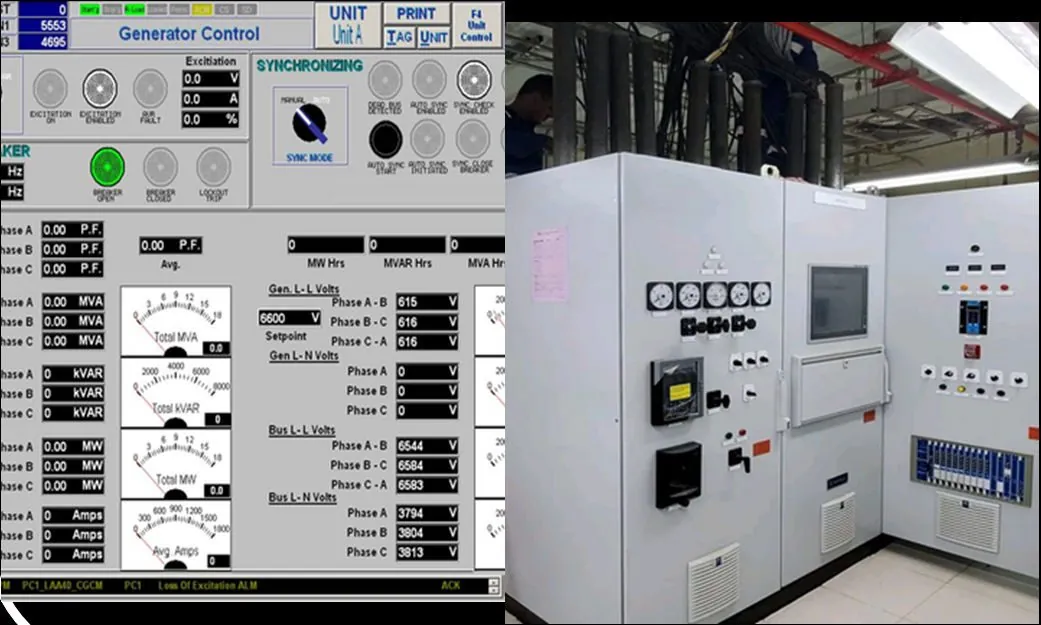

OMV CPF: 4 × 5.8 MW synchronisation & PMS
Challenge
Four Rolls-Royce gas engines at the CPF had to share load, synchronise and shed load automatically to protect production.
Solution
Installation and commissioning of synchronisation, power-management and load-management systems on DEIF AGC-3 with SIMATIC S7-400, including the MV/LV interconnection.
Result
23.2 MW of generation running as one managed power plant, followed by three grid-tied EPF systems on DEIF AGC-150.

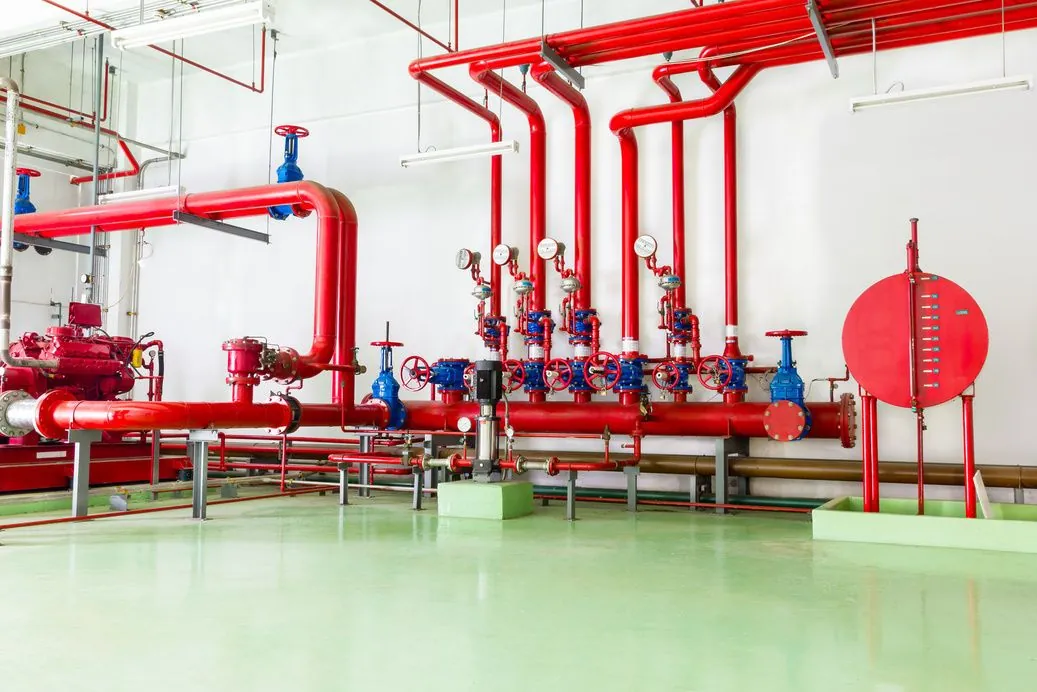

264 MW power plant: I&C, BoP & performance test
Challenge
Two GE units and the complete balance of plant had to be installed, commissioned and proven to the owner.
Solution
Installation, pre-commissioning, commissioning and start-up of both units with fire system, PAGA, water and crude-oil treatment.
Result
Plant proven through performance test and handed over.

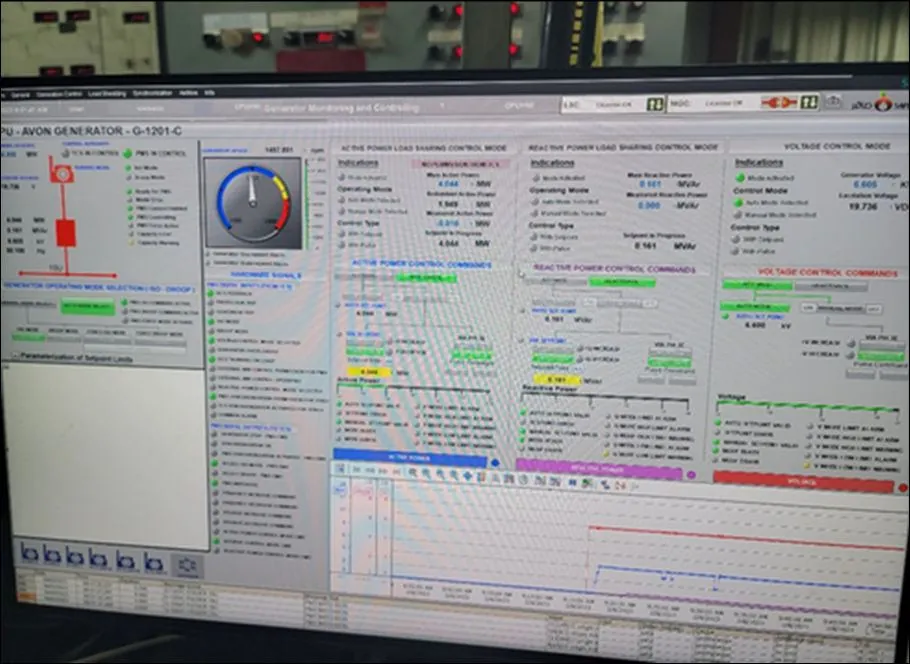

CPU ↔ CPU II interconnection: SICAM PMS
Challenge
Two plants (3 × Rolls-Royce AVON 16 MW and 3 × Solar Turbines 4 MW) ran separately, wasting reserve and risking trips.
Solution
Interconnection through Siemens SICAM 8000 power management, integrated with Allen-Bradley ControlLogix for load management.
Result
Both plants share load and reserve as one system.

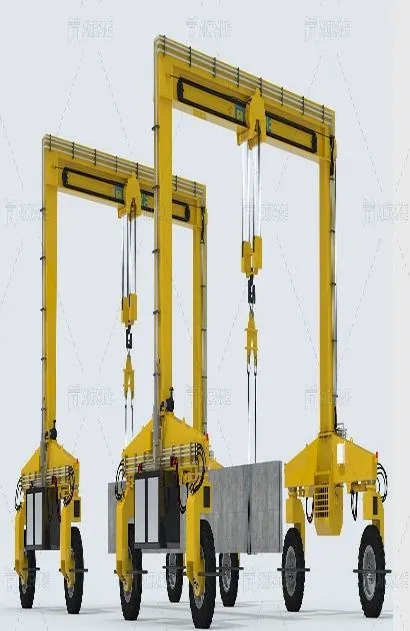

Aden container terminal: RTG crane migration
Challenge
Rubber-tyred gantry cranes needed new drives and controls without taking the terminal out of service.
Solution
Drive-system and control migration to modern AC drives and PLC control, commissioned crane by crane.
Result
Cranes back in service on modern, supportable drives.
Utility solar + BESS: SCADA EPC
Challenge
Trackers, weather stations, gensets, batteries and the grid interface needed one integrated control platform.
Solution
Turnkey SCADA EPC covering tracker and weather-station integration, gensets, synchronisation and grid interfaces.
Result
A single SCADA for the whole plant, from tracker to grid meter.
Trunkline control system
Challenge
Crude moved between early production facilities and the CPF without coordinated pipeline control.
Solution
EPC of a trunkline control system with telemetry linking the EPFs and the CPF.
Result
Pipeline flows monitored and controlled from one system.
Barton chart digitalisation
Scope
120 chart recorders converted to PLC self-calculation and historian data.
GT control-panel upgrade FT100 → FT125
Scope
FT100 to FT125 installation, commissioning and start-up.
Gas-engine control migration
Scope
Modicon (Schneider) control system migrated to Allen-Bradley.

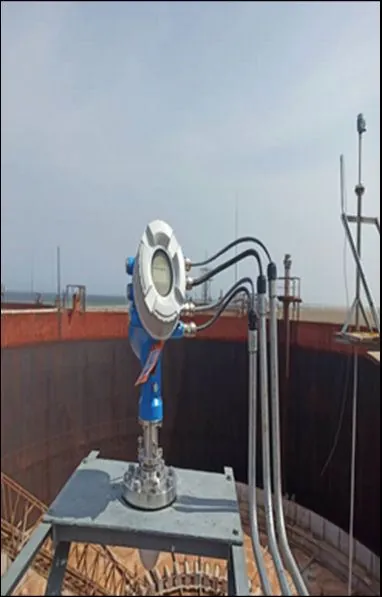

Tank monitoring system
Scope
EPC of a radar tank-gauging system on Endress+Hauser with cloud telemetry.
Gas-turbine power sharing
Scope
Power sharing for three Solar C-50 gas turbines on Allen-Bradley CGCM.
Alraja gas plant PMS
Scope
PMS for three CAT gas generators and a Solar C-20 turbine on DEIF AGC-150 with ControlLogix.
Well-field generator PMS
Scope
Synchronisation and PMS for MHI, Perkins and CAT generators at Aden well fields (team record).
